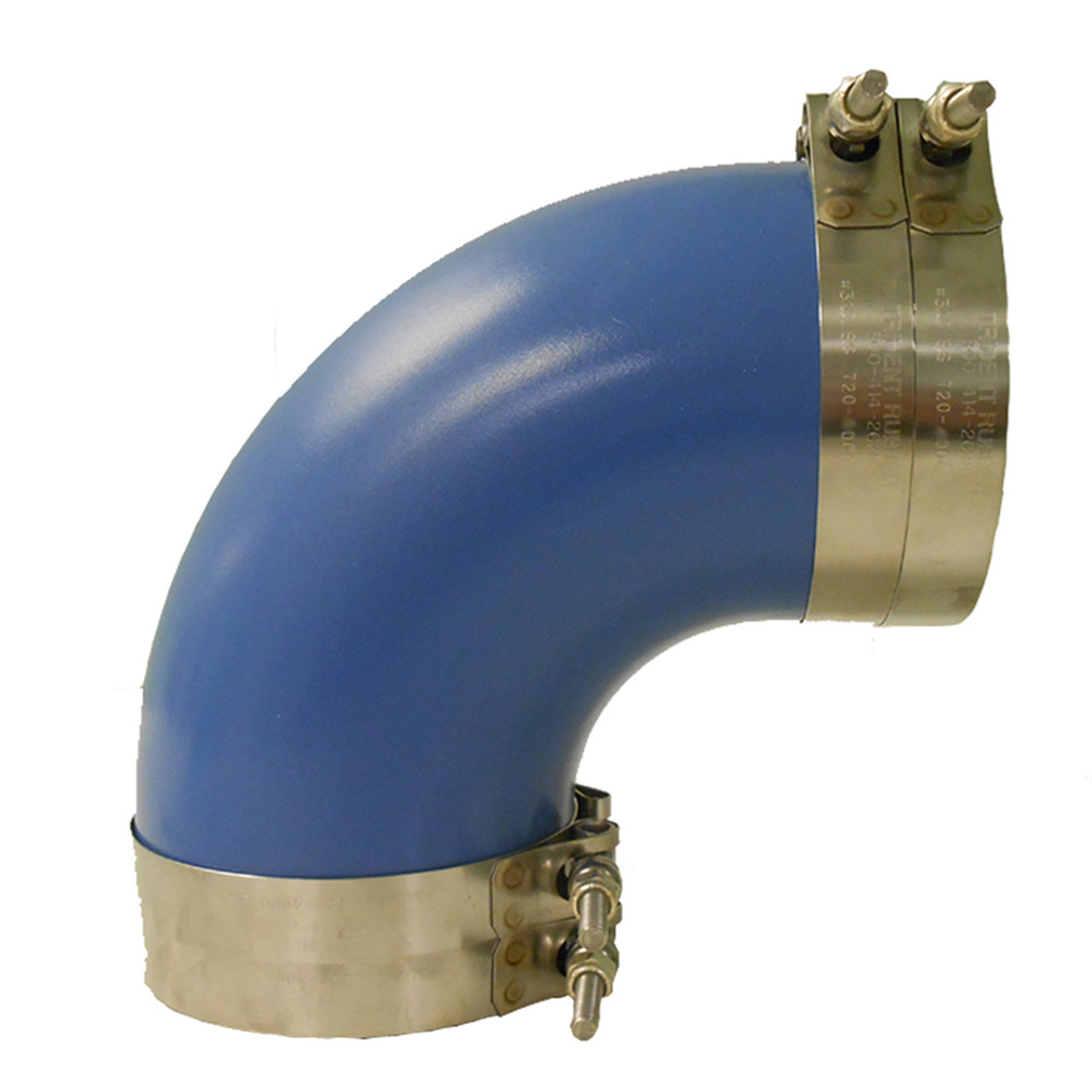

Trident Marine ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow w/4 T-Bolt Clamps

Product Description

ID 90-Degree Blue Silicone Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident silicone-blend rubber marine wet exhaust connections. They are molded in very high-temperature blue silicone EPDM blended rubber with a smooth bore and cover.

Features:

• Four stainless steel t-bolt clamps
• Very high temp silicone/EDPM blend rubber - molded
• This elbow has excellent resistance to ozone, salt water, diesel fumes, splash, cold, heat, and aging
• Exceeds (SAE J2006-R1, and ABYC & NMMA P-1) exhaust standards
• Blue very high-temperature silicone blended with EDPM rubber at 350°F (177°C) max continuous

Trident Marine 3"	Trident Marine 4"	Trident Marine 6"
Construction	Construction	Construction
Color: Blue Temperature Range: up to 350°F (177°C)	Color: Blue Temperature Range: up to 350°F (177°C)	Color: Blue Reinforcement: Reinforcing ribs on 6” I.D. and above Temperature Range: up to 350°F (177°C)
Specifications	Specifications	Specifications
nner Diameter: (inch) 3” / (mm) 76.2 A: (inch) 5.25” / (mm) 133 B: (inch) 5.25” / (mm) 133 C: (inch) 1.75” / (mm) 44.4 D: (inch) 1.50" / (mm) 38.1 R: (inch) 2” / (mm) 50.8 W: (inch) 0.25" / (mm) 6.4 Elbow Degree: 90 degrees	Inner Diameter: (inch) 4” / (mm) 101.6 A: (inch) 5.75” / (mm) 146 B: (inch) 5.75” / (mm) 146 C: (inch) 1.75” / (mm) 44.4 D: (inch) 1.50" / (mm) 38.1 R: (inch) 2” / (mm) 50.8 W: (inch) 0.25" / (mm) 6.4 Elbow Degree: 90 degrees	Inner Diameter: (inch) 6” / 152.4 mm A: (inch) 7” / (mm) 178  B: (inch) 7” / (mm) 178  C: (inch) 2.25” / (mm) 57.2 D: (inch) 2" / (mm) 57.2 R: (inch) 1.75” / (mm) 44.5 W: (inch) 0.25" / (mm) 6.4 Elbow Degree: 90 degrees
